Unlike the use of a simple laser pointer only used for temporary dot positioning work, in order to make long term lasted dot positioning works for various industrial positioning fields, it has become a major trend for engineers and factory workers to apply a highly intense beam emitted tool of a 660nm red laser diode module. It gets constant electric power source supply and proper integration into any industrial device or equipment. Basically it applies an import 660nm red laser diode and a qualified optic lens inside a durable housing tube, either it is pointing at close or long distance and ambient lighting occasions etc, this direct diode emission made red dot laser alignment enables high precision, good direction and high stability red dot generation onto multiple working surfaces.

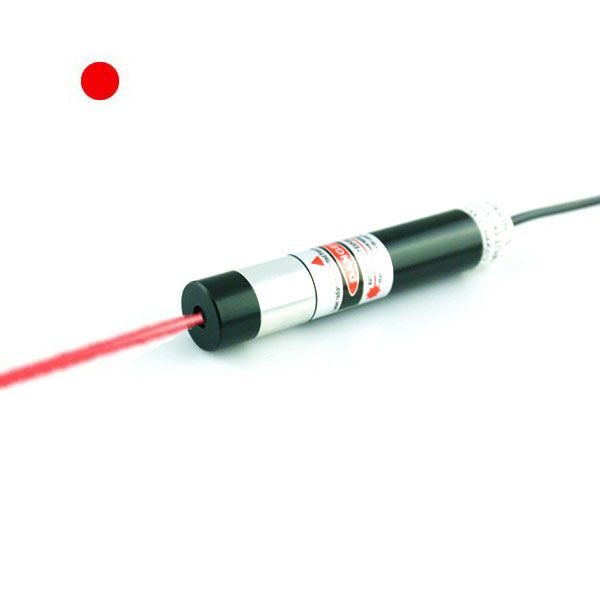

This 660nm red laser diode module emits the similar red laser light and red dot emission as a red laser pointer, however, it should have to make even longer time dot indication in various dot positioning works. It applies an import 660nm red laser diode as its beam emitting source. Owing to its mass production and mature laser diode tech development, it is not only supporting long term lasted red dot projection, but also getting quite low production cost. No matter red dot laser alignment is used for industrial or high tech precise dot positioning work, it always gets wide applications and enables high stability dot generation for multiple application fields, including laser marking, laser engraving, drilling system, high tech and lab experiment work etc.
Cooperated with a qualified glass coated lens and adjustable focus optic lens, whenever it gets highly powerful and intense red laser light concentration, this 660nm red laser diode module enables immediate red light source concentration, and converts into increasing accuracy and brightness red reference dot projection at different work distances. The red reference dot is clear and sharp, with positioning deviation controllable within millimeters. This red dot laser alignment makes high penetration red laser light emission from beam aperture, as a result, even though it is used in bright sunlight and dusty environments, it remains clearly visible red reference dot projection, and is not easily affected by interference. Owing to its ultra compact size tube design, it enables easy integration and convenient maintenance, which can be directly embedded in equipment, and has a long service life, eliminating the need for frequent replacements.
Applications in industrial dot positioning works:
Machinery Equipment: Serves as a positioning reference point for cutting and welding processes, assisting in workpiece positioning calibration.
Automated Production Lines: 660nm red alignment laser provides precise coordinate references for processes such as robotic arm grasping and PCB board assembly.
Warehouse and Logistics Equipment: Works with sensors to provide path guidance for goods sorting and shelf positioning.
Tag: laser diode module
Assistance Work of 635nm Red Laser Diode Module In Laser Marking Work
What is a good solution for engineers and professionals to make ultra clear and precise dot indication for all marking works? It is not workable at all to only rely on a simple red laser pointer or manual dot projecting work, it would be a much better solution to apply a high purity light emitted tool of a 635nm red laser diode module. It applies an import laser diode and a qualified optic lens inside a durable metal housing tube, together with its constant electric power source supply and easy installation or integration into any industrial marking device or equipment, this accessory part of red dot laser alignment enables good direction, quick response and high precision red dot indication onto multiple working surfaces conveniently.
Usually 635nm red laser diode module adopts an AC/DC adapter electric power source, accepting wide range electric current of 100V to 240V, thus it is applicable in multiple regions and districts. It applies an import 635nm red laser diode within 5mW to 100mW and 150mW to 500mW as its beam emitting source, equipped with a metal heat sink cooling system inside its durable anodized aluminum alloy housing tube, this red dot laser alignment gets larger space leaving for tube heat dissipation, and achieves ultra stable red light and red reference dot projection as long as 10 hours per day. Within the lowest time consumption, it can quickly completes workpiece pre-positioning, eliminating the time spent on manual marking and repeated adjustments. Preparation time for marking a single workpiece is reduced by more than 60%, improving the overall production line cycle time.
When 635nm red laser diode module gets correct output power and proper adjustment of both laser beam focus and dot emitting direction, its precisely focused red dot provides a clear positioning benchmark, effectively reducing alignment errors caused by manual placement. Auxiliary positioning accuracy can reach ±0.1mm, reducing scrap rates. Owing to its matured laser diode tech and low production cost, it can be directly integrated into various new and old laser marking equipment without significant equipment modifications, resulting in low investment and quick returns. Red dot laser alignment also maintains stable red light visibility in the strong light and dusty environments of the marking workshop, and has good adaptability to various marking materials such as metal, plastic, glass, and leather, unaffected by workpiece color.
General applications in laser marking fields:
Marking Area Pre-positioning: 635nm red laser diode module is projecting red dots before marking quickly calibrates the marking center, corner reference points, or boundary contour reference points, assisting operators in accurately placing workpieces at the marking station, replacing manual line marking.
Multi-station Splicing Marking Guidance: For segmented marking of large workpieces and multi-pattern combination marking, red dots mark the splicing reference points of adjacent marking areas, ensuring no misalignment or repetition at the splicing points, improving overall marking accuracy.
Tooling and Fixture Calibration Assistance: Regularly using red alignment laser dots to calibrate the positioning accuracy of the marking machine’s tooling and fixtures, verifying fixture offsets, and making timely adjustments to ensure consistency in batch marking.
Vision System Linked Marking: Linked with the marking machine’s vision positioning system, the red laser dot serves as an auxiliary target for visual recognition, improving the positioning efficiency and recognition accuracy of the vision system for reflective, dark-colored, and small-sized workpieces.
Scientific Research Work of Glass Coated Lens 532nm Green Laser Diode Module
When 515nm wavelength laser diode is applied for the creation of a green laser diode module, it is always projecting the most sensitive green light to the naked eyes, with brightness far exceeding that of red and blue light at the same power. It applies an import 515nm green laser diode and a qualified optic lens inside a durable housing tube, which is also equipped with thermal emitting system. When green dot laser alignment gets constant electric power supply and proper installation or integration into scientific experimental device or equipment, it enables easy reaching, noncontact and highly precise green dot projection. It also remains clearly visible in both low-light and high-light experimental environments, facilitating experimental observation and real-time calibration, and reducing visual errors.
Being made with a qualified glass coated lens and glass window design in front of laser beam aperture, not affected by moisture, dust, rain, water or fog, this 515nm green laser diode module is keeping work with high transmittance and high photoelectric ability forest green light emission at long extending distance. When it gets highly powerful green light concentrated, it can convert into increasing accuracy and good round shape green dot projection in distance easily. It keeps work with stable energy output without drift, fully meeting the core requirements of scientific research experiments for ultra-precise positioning and light source stability, ensuring accurate experimental data. When 515nm green dot laser alignment gets low laser beam divergence, cooperated with adjustable focus optic lens, it is adopted to experimental needs of different precision and scenarios, featured by good light concentration, allowing for switching of working modes as needed, adapting to various experimental schemes.
Usually 515nm green laser diode module gets quite small size tube diameter, which is designed with 16mm, 18.9mm and 26mm diameter for different output power range of 50mW to 200mW. Within the lowest power consumption and low heat generation, it is allowing for flexible integration into various scientific instruments and experimental platforms. It is compatible with different brands of detection and observation equipment, and modification and debugging are convenient without interfering with the overall operation of the experimental device. Owing to its pure light output, 515nm green dot laser alignment causes no additional damage to experimental samples, and will not interfere with the acquisition of other experimental data such as spectral analysis and electrical signal acquisition, ensuring the purity and traceability of experimental results.
Applications in scientific research fields:
Core Applications in Optical Experiments: As a visible light reference source, 515nm green laser diode module is used for optical path calibration, performance testing of optical components, and is suitable for basic optical experiments such as laser transmission, interference, and diffraction. It can also assist in building optical measurement systems.
Physics Research Scenarios: In mechanics experiments, it serves as a reference point for calibrating object displacement and marking motion trajectories; in thermal and electrical experiments, it assists in precise equipment alignment; and it is a core excitation and detection auxiliary light source for quantum physics and optical sensing experiments.
Materials Science Research: It serves as a precise positioning point for material microstructure analysis and surface property testing. It assists electron microscopes, spectrometers, and other equipment in focusing the area to be tested; and it marks monitoring points in material modification and weather resistance testing to achieve long-term tracking observation.
Biology and Life Sciences: 515nm green alignment laser serves as a positioning marker for biological sample observation. It tracks points during microbial culture, which is suitable for microscopic observation and sample sampling positioning, with low power and no damage.
Advanced Adoption of 980nm Infrared Laser Diode Module for Biomedical Field
In any type of ultra clear and precise dot measurement for biomedical fields, a longer wavelength made device of 980nm infrared laser diode module enables excellent biocompatibility. The 980nm near-infrared band has extremely low irritation to normal human tissues and a moderate penetration depth, reaching target tissues of subcutaneous veins and deep muscles without easily causing tissue damage, ensuring high safety. Employed by an import 980nm infrared laser diode and a qualified optic lens inside a durable meta housing tube, only after its easy connects with an external electric power source supply, this direct diode emission made infrared dot laser alignment allows easy reaching, noncontact and no track infrared reference dot projection for multiple night version biomedical treatment fields conveniently.
In practical biomedical fields, the genuine use of a 980nm infrared laser diode module brings operators quite special use. It applies an import 980nm infrared laser diode within 5mW to 500mW and high power up to 600mW to 1000mW, equipped with a metal heat sink cooling system inside a durable anodized aluminum alloy housing tube, it enables long term lasted IR laser light generation in long term use. Owing to its superior nice heat dissipation, when infrared dot laser alignment makes constant infrared dot projection within 10 hours per day, it can maintains good laser beam stability, ultra long term lasted and precise infrared dot generation in long term use. Usually infrared light is completely invisible to the naked eyes, it does not produce dazzling strong light during use, does not affect the medical staff’s field of vision, and does not cause visual discomfort to patients, improving the comfort of diagnosis and treatment.
Configured with a qualified glass coated lens and adjustable focus optic lens designs in front of beam aperture, 980nm infrared laser diode module enables strong energy controllability. It allows high photoelectric ability and highly powerful infrared laser light emission, and converts into increasing accuracy and brightness infrared dot projection at a longer extending distance. According to the selection of different output power, it is matching different diagnostic and treatment scenarios as needed, offering excellent adaptability. Whenever 980nm infrared dot laser alignment gets highly concentrated IR laser light generation, it allows for targeted application to specific target areas, avoiding ineffective light radiation and ensuring the accuracy of diagnosis and treatment.
6.Whatever output power it is selected, this APC, ACC driving circuit board made device of 980nm infrared laser diode module enables stable output power with minimal fluctuation in light power output, ensuring accurate detection data and consistent therapeutic effects. Being made with compact structure and small size, this infrared alignment laser allows for easy integration into portable vein imaging devices, wearable health monitoring equipment, and small therapeutic devices, contributing to the miniaturization and portability of medical equipment.
Applications in biomedical fields:
1. Vein Imaging Assistance: As the core light source for vein imaging devices, infrared alignment laser light penetrates the skin surface, clearly outlining the contours of subcutaneous veins, assisting medical personnel in accurate venipuncture, suitable for outpatient blood collection and intravenous infusion.
2. Infrared Physiotherapy and Rehabilitation: Utilizing the 980nm infrared light thermal effect, it acts on local human tissues, promoting blood circulation and relieving muscle strain and joint pain, suitable for rehabilitation physiotherapy and pain management equipment.
3. Biological Tissue Detection: 980nm infrared laser diode module is used for infrared imaging of biological tissues and infrared characteristic analysis of pathological sections, assisting in lesion screening and tissue characteristic research, providing technical support for pathological diagnosis.
4. Non-invasive Health Monitoring: Integrated into non-invasive detection equipment, assisting in monitoring health indicators such as blood glucose, blood oxygen, and tissue water content, obtaining physiological data through the differences in absorption and reflection of infrared light by tissues.
5. Photobiomodulation Therapy: Low-power specifications are used for photobiomodulation, improving cell metabolism and promoting tissue repair, suitable for auxiliary treatment scenarios such as wound healing and mucosal repair.
6. Biomedical Research Experiments: 980nm infrared dot laser alignment is used for infrared response experiments of biological samples, non-invasive observation of living tissues, and infrared characteristic research of biological macromolecules (proteins, nucleic acids) in basic biomedical research.
Unique Use of 808nm Infrared Laser Diode Module for Industrial Processing Works
Whatever kind of working surface users are trying to make ultra clear and precise dot indication for those of industrial processing works, under operation of night version illumination work fields, it always makes an efficient job to apply a long wavelength made device of a 808nm infrared laser diode module. Compared to any other visible laser devices, owing to the adoption of a longer wavelength 808nm infrared laser diode, it projects invisible infrared laser beam and infrared reference dot from beam aperture. When infrared dot laser gets constant electric power source supply and proper equipment with night version device, it enables undisturbed IR laser dot alignment for all inspection works. It also assures low production cost, low thermal energy consumption and high precision infrared reference dot projection for all night version measuring fields conveniently.
Basically 808nm infrared laser diode module gets constant electric power source from an AC/DC adapter, after the acceptation of 100V to 240V operating voltage, it is working well with constant infrared laser beam emission from an IR laser diode within 5mW to 500mW and high power range of 600mW to 1000mW. For the most important of all, when it is used for long term lasted work, it gets advanced use of a metal heat sink cooling system inside a durable anodized aluminum alloy housing tube. Whenever infrared dot laser alignment gets superior nice heat dissipation, equipped with its low laser beam divergence, it is allowing for sub-millimeter positioning accuracy.
Unlike the visible laser devices, longer wavelength 808nm infrared laser diode module emits invisible IR laser light to the human eyes, thus it should only be working together with any night version device, such as a CCD camera, black and white camera or IR laser camera etc. It is applying a durable anodized aluminum alloy housing tube, which bears wide range operating temperature and mechanical moving or calibration. The near infrared laser light exhibits low attenuation in dusty and smoky environments, resisting strong light and electromagnetic interference, making it suitable for stable operation in harsh industrial conditions. Besides its operation of correct output power, infrared dot laser alignment allows proper adjustment of laser beam focus and IR dot emitting direction so as to achieve ideal dot aligning accuracy easily.
General applications in industrial processing works:
1. Precision Positioning and Tool Setting: 808m infrared laser diode module is used for tool setting and path calibration in machine tools, cutting machines, welding machines, etc. The dot-shaped IR laser spot provides precise positioning of the processing reference, suitable for metal/non-metal cutting, PCB assembly, woodworking machinery tool setting, and other scenarios.
2. Industrial Vision and Inspection: 808nm infrared alignment laser serves as infrared supplementary lighting and positioning markers in machine vision systems, assisting in the identification of part contours and surface defects. Suitable for automated sorting, 3D structured light inspection, and semiconductor wafer alignment.
3. Laser Pump Source: High-power laser modules are used to pump Nd:YAG and other solid-state lasers, providing high-energy laser output for metal welding, marking, and micromachining.
4. Material Modification and Curing: Precise irradiation achieves localized heating, used for 3D printing material curing, plastic welding, coating drying, etc., with a small heat-affected zone and high efficiency.
5. AGV and Robot Navigation: Provides infrared positioning points for industrial robots and AGVs, supporting SLAM navigation and precise docking, unaffected by strong light interference.

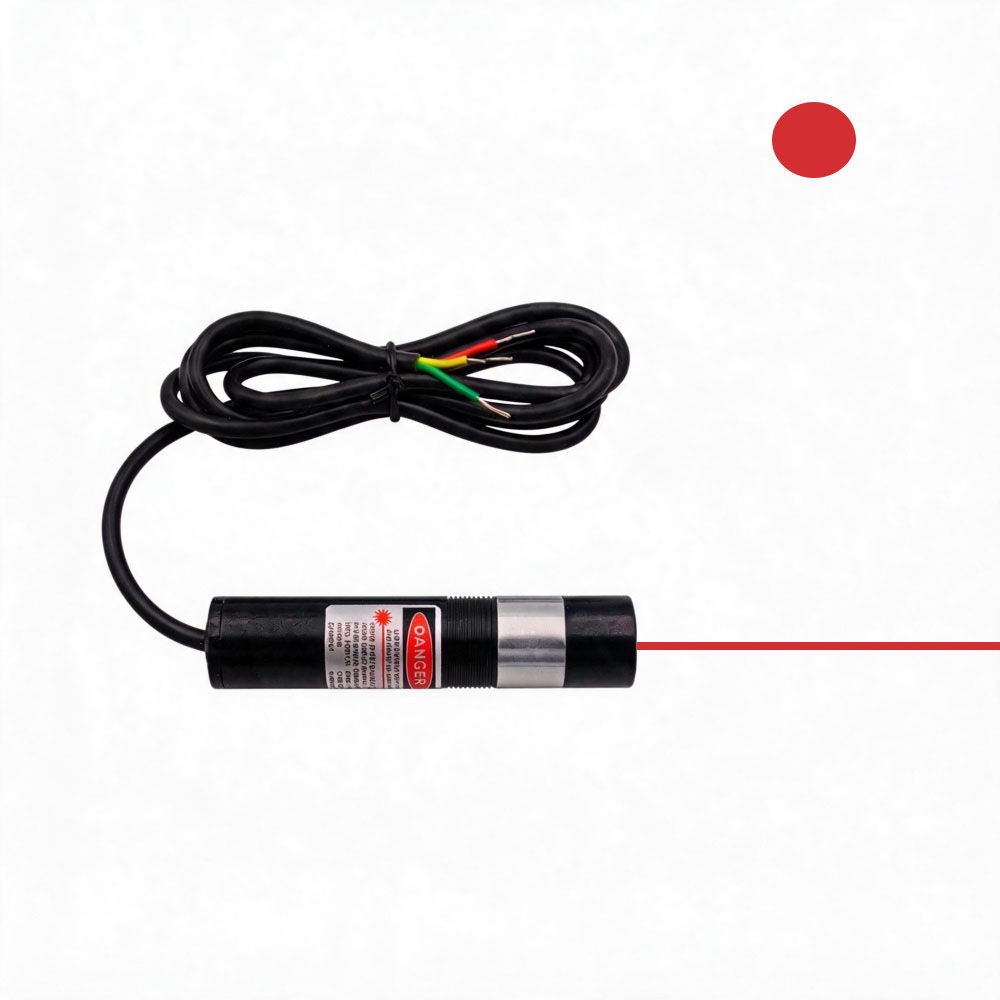

High Visibility 650nm Red Laser Diode Module For Industrial Processing Use
Whatever kind of working surfaces users are in need of seriously accurate and bright dot indication in those of industrial machinery processing works, not able to rely on any prior dot positioning work with any manual or mechanical dot aligning tool, it would be a much better solution to apply a highly bright and intense beam emitted tool of a 650nm red laser diode module. It applies an import 650nm red laser diode and a qualified optic lens inside a durable metal housing tube, the projected red laser light gets featured advantages of high red light visibility, clear visual recognition in normal temperature industrial environment. When red dot laser module makes correct use of output power and proper installation or integration into industrial machine or equipment, it enables ultra clear, no glare and no mistake dot measurement onto various working surfaces conveniently.
When dot measuring work is processing in various industrial machinery processing works, 650nm red laser diode module is required to generate different dimension red reference dot onto different working surfaces. It applies an import 650nm red laser diode within 5mW to 100mW and high power up to 150mW to 500mW as its beam emitting source. Usually it is designed with with an internal metal heat sink cooling system inside a durable anodized aluminum alloy housing tube, which is achieving superior nice heat dissipation and ultra stable red dot generation as long as 10 hours per day. Whatever output power it is selected, red dot laser alignment still maintains low energy consumption and low heat dissipation, thus high power version is suitable for long distance dot positioning works effectively.
According to proper use of a qualified glass coated lens and glass window in front of laser beam aperture, whatever kind of working surface it is pointing, this 650nm red laser diode module still keeps work with high transmittance and high photoelectric ability red laser light generation, and converts into increasing brightness and accuracy red dot projection at greater distance of 25 meters and multiple high lighting environments as well. In various industrial precise dot positioning works, red alignment laser dot diameter gets less than 2mm at 10 meters, high positioning accuracy and high stability, unaffected by dust and slight oil contamination as well. Without spending extra time on prior manual or mechanical dot positioning work, it always enables reduced error and improved work efficiency for all precise dot positioning works.
Within the lowest time consumption and the lowest manual labor force input, 650nm red laser diode module always makes sure of simple operation, low maintenance cost, and adapted to low- to mid-range processing equipment. It is compatible with various processing materials such as metals (steel, aluminum), plastics, and wood, requiring no adaptation to special workpiece surfaces.
General applications in industrial processing works:
Metal/Non-metal Processing Positioning: Precise calibration of processing points on CNC lathes, milling machines, and cutting machines
Welding Auxiliary Alignment: Pre-positioning of weld seams and workpiece fitting calibration for laser welding and arc welding
Mold Processing Alignment: Alignment of cavity points and processing path guidance for injection molds and stamping dies
Automated Production Line Positioning: Precise point marking for workpiece gripping and assembly stations on assembly lines
Good Beam Quality 532nm Green Laser Diode Module For Industrial Marking Work
Whenever the advanced 532nm green DPSS laser tech and a qualified glass coated lens are configured with a highly durable metal housing tube, it is manufactured into a professional dot measuring tool of a 532nm green laser diode module. It projects highly bright and visible green laser light from a middle wavelength of 532nm green DPSS laser system, owing to its low laser beam divergence and special TEM00 laser beam mode, either it is used for close or long distance, green dot laser alignment maintains ultra compact size and highly bright green reference dot projection. High density green laser light is converted into increasing accuracy and brightness green reference dot, which fulfills high stability, high accuracy dot generation for all precise machinery processing works constantly.
Being made with an AC/DC adapter, not spending extra time on battery change, 532nm green laser diode module enables long term lasted green dot projection, unaffected by increasing temperature and serious electric current impact as well. When it applies a qualified glass coated lens and adjustable focus optic lens in front of laser beam aperture, equipped with an inner metal heat sink cooling system inside a durable anodized aluminum alloy housing tube, green dot laser alignment enables long term continuous green dot projection, resulting in minimal power drift and a low failure rate over long-term use. Combined with APC, ACC driving circuit board, whatever output power it is selected, it keeps work with high beam stability and long serving lifetime for all precise dot positioning works.
According to the adoption of 16mm, 18.9mm and 26mm diameter metal housing tube design, together with electric wires extension for both of 532nm green laser diode module and DC power supply, it allows for easy integration into CNC engraving machines, fully automated marking production lines, and other equipment. Highly bright green laser light forms high contrast marking on materials, such as red and orange plastics, facilitating subsequent quality inspection and traceability. Compared to infrared lasers of the same power, green alignment laser light has stronger visibility, requiring no additional auxiliary equipment during debugging, and operation safety can be ensured by using safety goggles.
General applications in medical treatment field:
Non-metallic Material Marking: 532nm green laser diode module is suitable for white, transparent, flexible plastic parts in the medical field, such as infusion set interfaces and medical catheters; also suitable for plastic casings of 3C products, acrylic decorative parts, and logo marking on wooden crafts and leather bags.
Metallic Material Marking: For highly reflective precious metals such as gold and silver, it can accurately mark item serial numbers and purity indicators; it can also be used for parameter marking on metal parts such as automotive parts and industrial bearings, avoiding reflection affecting the marking effect.
Special Material Marking: green dot laser alignment is suitable for glass products, such as production dates on mobile phone screens and automotive glass, and parameter marking on optical lenses; it is also suitable for fine marking of electronic components such as integrated circuit chips and PCB boards, and can also be used for traceability marking of fragile foods such as eggs.
How Can 515nm Green Laser Diode Module Work in Industrial Positioning
When laser tech engineer develop a quite practically used dot positioning tool, such as a 515nm green laser diode module, it is not simple projecting highly visible and bright forest green laser beam at several miles far away, but also assuring ultra clear and precise green dot projection for both of long term and long distance dot positioning works. Basically it gets special use of heat dissipation design inside a different dimension tube, not limited by long distance, high height and other complex working environments etc, this green dot laser alignment enables high sensitivity green light emission, ultra clear and precise green dot projection onto multiple industrial raw material surface processing works conveniently.
Basically 515nm green laser diode module emits high sensitivity green laser light from a near middle wavelength of 515nm, thus it is able to make ultra clear and precise green dot projection onto those of industrial raw material surfaces, such as metal or plastic. When it adopts an inner metal heat sink cooling system design inside a durable anodized aluminum alloy housing tube, green dot laser alignment gets perfect performance under wide range operating temperature, different humidity and any other harsh working environments as well. As a result, when it makes constant green reference dot projection within 10 hours per day, it still gets no effect by overheating, and makes no blurring green laser light generation continuously.
Every time 515nm green laser diode module gets proper connects with 5V, 9V 1000mA AC/DC adapter, not any longer relying on manual labor force input, it enables long term lasted green laser light source generation, and converts into increasing accuracy and brightness green dot projection as long as 26 meters. Cooperated with adjustable focus optic lens design, the focused green laser dot diameter can be controlled within 0.1 to 1mm, and low laser beam divergence angle of ≤0.3mrad. A correct output power made green dot laser alignment meets the precision industrial alignment requirements. When it is working within wide range operating temperature and any other possible harsh working environments, it still makes ultra clear and precise green dot indication.
General applications in industrial processing works:
3C Electronics: Mobile phone/computer component placement and positioning, PCB board soldering alignment, screen assembly reference marking;
Automotive Manufacturing: Automotive component (lights, wiring harness) assembly positioning, body welding seam guidance, stamping part precision calibration;
Machining: Green alignment laser dot is applied for machine tool cutting reference positioning, mold closing alignment, precision component drilling/milling point marking;
Automated Conveying: Assembly line workpiece positioning and sorting, AGV cart path reference guidance, warehouse goods stacking alignment.
High Stability Use of 635nm Red Laser Diode Module For Medical Assistance
What is an efficient job to make ultra clear and precise dot indication in medical treatment and surgery works? It might be processing at various work distances, however, the operation of 635nm red laser diode module has just changed the situation. It applies an import 635nm red laser diode and a qualified glass coated lens inside a durable housing tube, cooperated with its constant electric power source supply and proper integration with medical treatment device or equipment. When it gets correct use of output power, the core functions of a 635nm red dot laser alignment in medical assistance is to serve as a low-risk, highly visible optical indicator tool, providing a precise visual target for diagnostic and treatment procedures, helping doctors locate lesions, mark operating areas, or calibrate medical equipment.
The genuine use of a 635nm red laser diode module applies an AC/DC adapter as its electric power source, which is required to make long term lasted red laser beam emission at several miles far away. Being made with an import 635nm red laser diode within 5mW to 100mW and high power range of 200mW to 500mW, either adopting inner or separate cooling system, together with its durable anodized aluminum alloy housing tube design, this direct diode emission made 635nm red dot laser alignment achieves excellent heat dissipation, and ultra stable and clear red dot projection as long as 10 hours per day.
In practical laser medical treatment works, based on the selection of output power within 0.5 to 5mW Class IIIa 635nm red laser diode module, under normal use, it will not burn the skin or damage mucous membranes. Red light has extremely low penetration into human tissue (only the epidermis), eliminating radiation risks and allowing direct localization on or within the human body. When it gets low laser beam divergence of less than 1mrad and special TEM00 laser beam mode, this qualified glass coated lens made 635nm red dot laser alignment enables the most compact size and the brightest red reference dot projection.The red dot remains clear and sharp under operating room shadowless lamps and standard treatment room lighting. Doctors can quickly identify the location point with the naked eye, eliminating the need for complex imaging equipment and avoiding delays in operation. In addition, it always allows for easy integration into medical devices such as endoscopes, dental handpieces, and surgical navigation systems.
General applications in medical assistance works:
Dental Diagnosis and Treatment Assistance: During fillings, root canal treatments, or tooth cutting, the red dot marks the area of caries and the reference line for polishing, helping the surgeon precisely remove diseased tissue and avoid damaging healthy tooth tissue.
Surgical Positioning: For example, during small dermatological tumor removal and plastic surgery suturing, the red alignment laser dot marks the incision location or suture alignment point. In neurosurgery, it assists in calibrating the relative position of surgical instruments and lesions (requires integration with an image navigation system).
Medical Equipment Calibration: During routine calibration of ultrasound probes and laser therapy devices (such as freckle removal devices), the 635nm red laser diode module serves as a reference point to ensure that the device’s emitted energy and detection area are precisely aligned with the target location, preventing treatment errors.
Rehabilitation therapy assistance: During sports rehabilitation training, red dot laser alignment tool can mark the joint trajectory points where the patient needs to move (such as the knee flexion and extension benchmark), helping patients complete rehabilitation movements according to the precise path and improve training effects.
High Visual Recognition Glass Coated Lens 515nm Green Laser Diode Module
What is an efficient job for users to make ultra clear and precise dot indication at different work distance and lighting occasions? It is emitting similar green laser beam and green reference dot as a green laser pointer, however, when it gets better thermal emitting design and constant electric power source supply, it is manufactured into a more practically used device of a 515nm green laser diode module. It is equipped with an inner thermal emitting system and external electric power source supply. Being made with ultra compact size and highly durable metal housing tube design, only after its proper installation or integration with any other required machine or device, this green dot laser alignment tool makes sure of highly bright green laser beam emission, ultra precise and clear violet reference dot projection for multiple working distances and lighting occasions as well.
Compared to formal alkaline battery power source supported laser pointer, the genuine use of a 515nm green laser diode module adopts an AC/DC adapter as its electric power source. It applies an import 515nm green laser diode within 50mW to 100mW and high power up to 150mW to 200mW, even though it gets high thermal consumption, however, it should only be equipped with different operating voltage of 5V, 9V or 12V 1000mA DC power supply. Whatever output power it is selected, not limited by long distance or high height, this accessory part of a green dot laser alignment maintains ultra intense and bright forest green laser beam emission at several miles far away, and enables ultra clear and precise green reference dot projection as long as 25 meters and other ambient lighting occasions as well.
The generated forest green laser light from a 515nm green laser diode module is near the peak of the human eye’s visible light sensitivity. At the same power, its brightness is much higher than red light (such as 650nm), making it clearly visible even in strong sunlight or at long distances. When it gets low laser beam divergence and special use of adjustable focus optic lens, after its immediate forest green laser light projection from beam aperture, this 515nm green dot laser alignment makes efficient conversion of increasing accuracy and brightness green reference dot projection at a longer distance. Owing to its good focused green laser light emission, within a minimum spot diameter down to micrometers, it is meeting the alignment requirements of precise scenes. Compared with any other visible red lasers, once it is pointing under outside or other high lighting working environments etc, it gets enhanced interference immunity in outdoor and high-brightness environments, eliminating the need for dark backgrounds for identification.
Applications:
Industrial Manufacturing: Tool alignment in machining, circuit board soldering positioning, and precision calibration of automated equipment.
Medical: 515nm green laser diode module is making clear green dot positioning dental restorations in dentistry, assisted aiming for ophthalmic examinations (must comply with medical-grade safety standards).
Measurement and Inspection: Alignment laser line projectors (dot reference), target indication for distance measurement equipment, and laboratory sample positioning.
Consumer Electronics/Security: Laser pointers (low power), assisted aiming for security cameras, and spatial positioning markers for AR/VR devices.
